DY517 Manifold Digital Digital Pressure Gauge Refrigeration Vacuum Pressure Manifold Tester HVAC Temperature Tester for Car
DY517 Manifold Digital Digital Pressure Gauge Refrigeration Vacuum Pressure Manifold Tester HVAC Temperature Tester for Car
Cheap Pressure Gauges, Buy Quality Tools Directly from China Suppliers:DY517 Manifold Digital Digital Pressure Gauge Refrigeration Vacuum Pressure Manifold Tester HVAC Temperature Tester for CarEnjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.
The goods are excellent! Delivery fast! To Brest in Belarus for 19 days! In work, everything is fine, the gases do not miss, everything is whole and works for Hurray! The seller is sociable, answered all questions. The parcel was not tracked. The seller strongly recommend!
The goods are excellent. I recommend, all as in the description. To the Perm Territory went exactly 4 weeks. The seller sent the goods immediately the next day. Look good to see the case.
Excellent. Do not magnetic, but by weight heavy. There are brass items. Carving by SAE 1/4. Recommend
It came 12 days before Rostov, in appearance not bad, as I will try, if there are bad-I will complement
Like normal to touch good taps in put on yet did not try
Price: US $78.19 US $159.57 (Discount 51%)
Rating: 5.0 / 5.0 (100.0%) from 2 Reviews
Sold : 4
Stock : 92
Wishlist : 30
Ships From : China
Color : DY517
Specification
Brand Name : Duoyi
Certification : CE
Origin : CN(Origin)
Dial Diameter : 2 - 3.9 Inches
Display Type : DIGITAL
Max Measuring Range : 200 PSI & Above
Model Number : DY517 Pressure Gauge
Feature : Portable LCD Digital Manometer
Power : 4x1.5V (SIZE.AA/LR6) Battery not include
Pressure test resolution : 1 Kpa
Size : 70x110x50mm
Pressure test unit : Kpa; Mpa; bar; inHg; PSI.
Pressure overload limit : 10000 Kpa (10 Mpa; 100 bar;)
Description
DY517 Manifold Digital Digital Pressure Gauge Refrigeration Vacuum Pressure Manifold Tester HVAC Temperature Tester
Feature:
EC/EN61010-1 safety standards for design and production.
1) The pressure measured by the digtal manifold pressure tester is gauge pressure.
2) Pressure testing ranges from -101Kpa to 6Mpa (-0.1bar to 60bar).
3) The limit pressure is 10 Mpa (100 bar).
4) The maximum operating pressure of standard hose is 600 PSI ( approximate 4.13 Mpa, 41.3 bar ). The limit pressure is 3000 PSI approximate 20.68 Mpa, 206.8 bar ).
5) Please confirm the rated pressure value of the tested equipment before testing. Do not use it if it exceeds the range of the instrument. Also for DY517A, if the packed
hoses does not match the pressure requirement, you can use suitable replacements for testing.
6) Do not use and store the instrument in high temperature, high humidity, flammable, explosive and strong electromagnetic fields.
7) Please do not change the instrument internal circuit, to avoid any damage of the instrument or danger occurring.
8) Please wear qualified protective equipment to protect user during testing.
9) Please use the instrument in a well-ventilated environment to prevent inhalation of toxic gases.
Description:

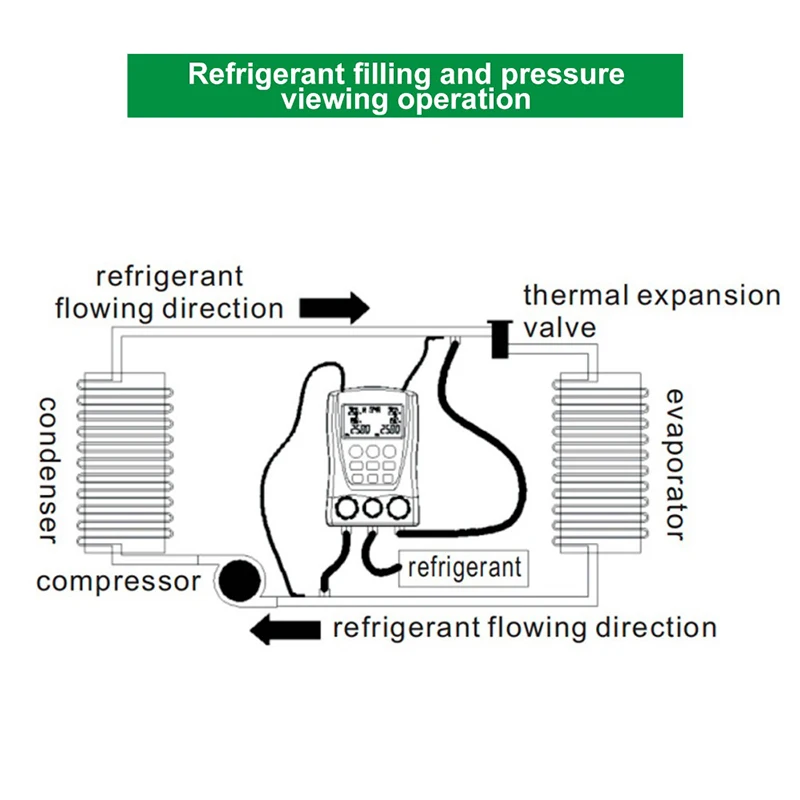

The intelligent electronic refrigerant group instrument is an auxiliary instrument for the installation, testing and maintenance of refrigeration equipment such as air conditioners and cold storage. The instrument has double pressure test, dual temperature test (need test clip,not include), digital readout, multi-unit switching, multi-mode function and built-in refrigerant database. The instrument uses high-strength engineering plastics and flexible non-slip silicone design, the whole machine is solid and comfortable to hold. Built-in 32-bit digital processing unit and high-precision data acquisition unit, high data and stability. Large-size liquid crystal display, LCD backlight support, data display clear and easy to read, convenient light operation. Long-life valve switch, 1/4-inch standard interface design to ensure that the instrument's durability and versatility.
The instrument can measure double pressure (gauge pressure) at the same time, as well as dual temperature measurement (need test clip,not include), with automatic multi-unit pressure conversion, automatic conversion of temperature Celsius / Fahrenheit, to facilitate different needs. Built-in 89 kinds of refrigerant pressure-evaporation temperature database, also calculate the subcooling superheat, to facilitate direct reading of operating process data. Also it tests percentage of vacuum measurement; pressure leak measurement, leak time speed record. It is deserved to have this multi-functional, accurate and simply operated digital manifold let you do the job right.

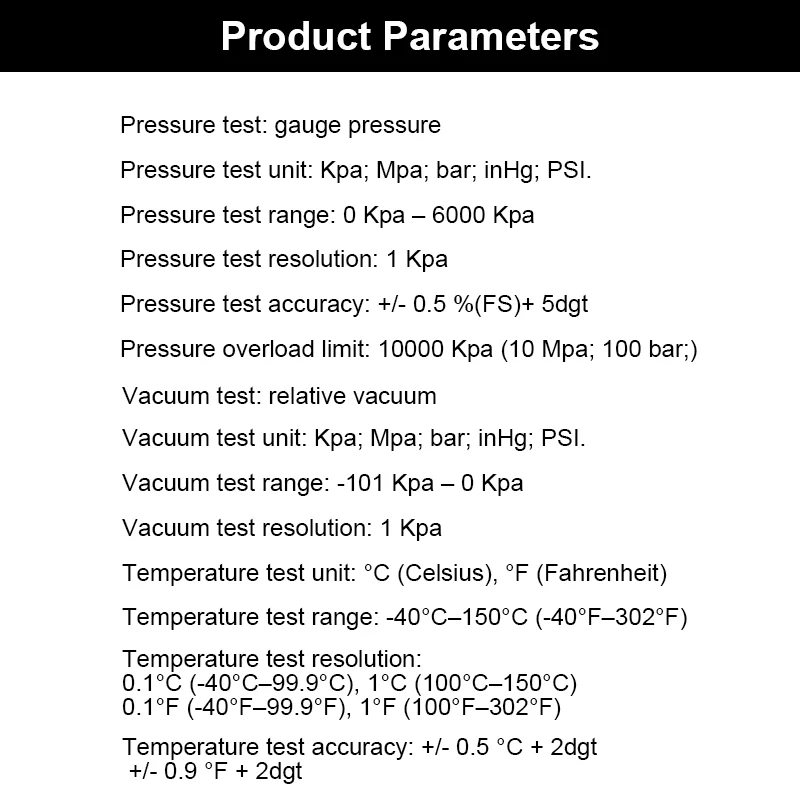

Specifications:
Dimensions: 170*110*50mm/6.69*4.33*1.97"
Weight: 950g
Pressure test: gauge pressure
Pressure test unit: Kpa; Mpa; bar; inHg; PSI.
Pressure test range: 0 Kpa~6000 Kpa
Pressure test resolution: 1 Kpa
Pressure test accuracy: +/- 0.5 %(FS)+ 5dgt
Pressure overload limit: 10000 Kpa (10 Mpa; 100 bar;)
Vacuum test: relative vacuum
Vacuum test unit: Kpa; Mpa; bar; inHg; PSI.
Vacuum test range: -101 Kpa ~0 Kpa
Vacuum test resolution: 1 Kpa
Temperature test unit: °C (Celsius), °F (Fahrenheit)
Temperature test range: -40°C~150°C (-40°F~302°F)
Temperature test resolution:
0.1°C (-40°C~99.9°C), 1°C (100°C~150°C)
0.1°F (-40°F~99.9°F), 1°F (100°F~302°F)
Temperature test accuracy: +/- 0.5 °C + 2dgt +/- 0.9 °F + 2dgt

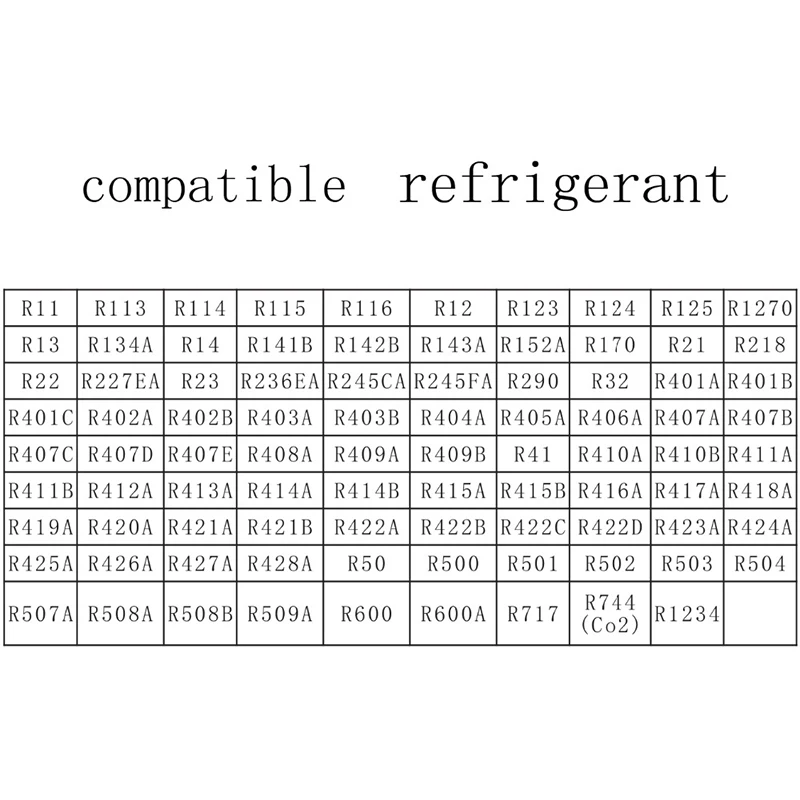

Built-in 89 kinds of refrigerant NIST: According to American NIST standard
Power Supply: 4* AA Battery (not include)

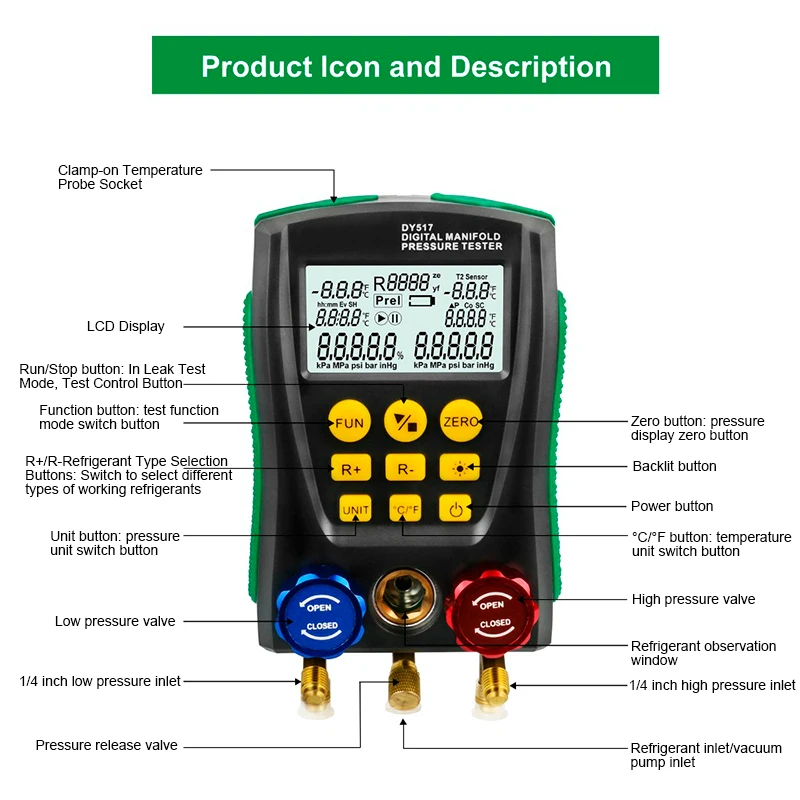

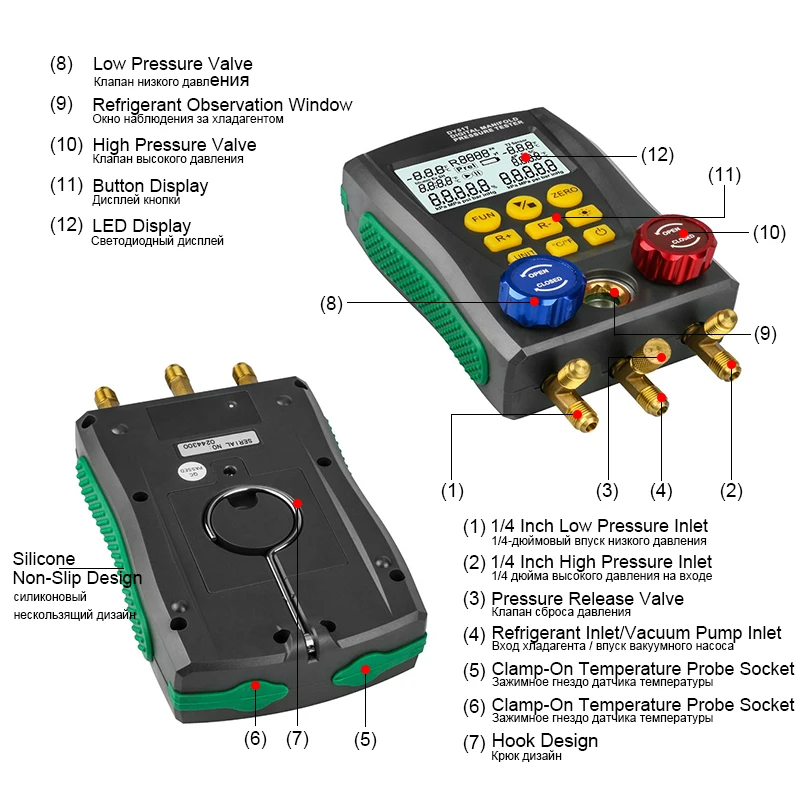

(1)1/4 inch low pressure inlet
(2)1/4 inch high pressure inlet
(3)Pressure release valve
(4) Refrigerant inlet/vacuum pump inlet
(5)Clamp-on temperature probe socket
(6)Clamp-on temperature probe socket

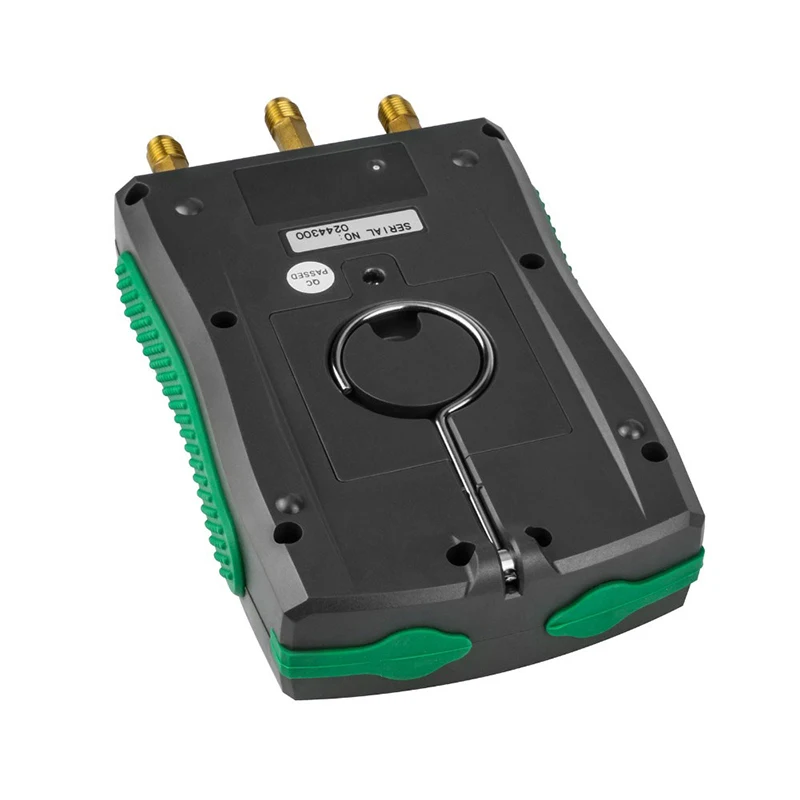

(7)Hook design
(8) Low pressure valve
(9)Refrigerant observation window
(10)High pressure valve
(11)Button display
(12)LED display
Packing list:
1* DY517 Refrigeration Digital Manifold Gauge (not include battery)
1* User Manual (English)
Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow slight measuring deviation due to manual measurement.
